1. Setup
Audio streaming (mp3 and ogg) was conducted using paraslash over the 2.4GHz ISM band.The access point was a 2GHz AMD Mobile Sempron 3700+ with a D-Link System DWL-G122 802.11g USB Adapter (ralink rt73), using hostapd as access point manager. The receiver was a Lenovo T60P with Intel Core Due T2400 1.83Ghz and 3945ABG (iwl3945) wireless interface.
Both systems had a 2.6.35+ kernel using the patches from the DCCP test tree at git://eden-feed.erg.abdn.ac.uk.
To get the most out of the connection, partial checksum coverage (only covering the header, not the payload), plus FEC encoding (groups of 30 packets containing 10 data packets each, utilizing the maximum packet size) were used.
The receiver was located close to the sender: between 20 centimeters and 2.5 meters.
2. CCID-3 behaviour
Over the period of 10-30 minutes the streaming went without big
problems, irrespective of format (mp3 use small packets, ogg uses
'pages' of about 4k each). The worst disruption in this period
were short-time
interferences, evidently caused by corrupted payloads (passed to the audio decoder thanks
to partial checksums).Then suddenly a longer-term disturbance occurred, starting initially with holes in the audio stream which became longer, until finally completely cutting off.
The following passages describe the condition and its causes in detail. The disturbance startet at 650 sec and lasted until about 850 sec. The plots show an improvement afterwards, which was caused by moving the receiver from its distance of about 2.5 meters (including a thin brick wall) very close to the sender (about 20-30 centimeters).
2.1 Loss rate

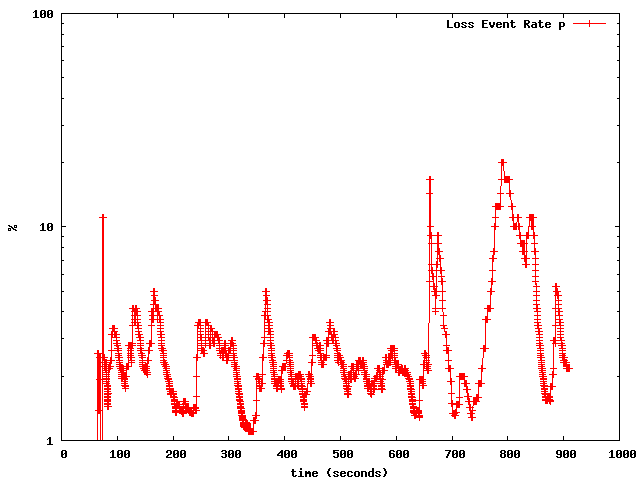

The first thought was an increase in the loss rate, which indeed occurred to some extent as the following plot of the connection shows.
However, this was nothing too much of the ordinary. The link had been observed for longer time and was known to exhibit a typical TFRC loss rate in the range of 1% .. 10%.
2.2 Transmit rate

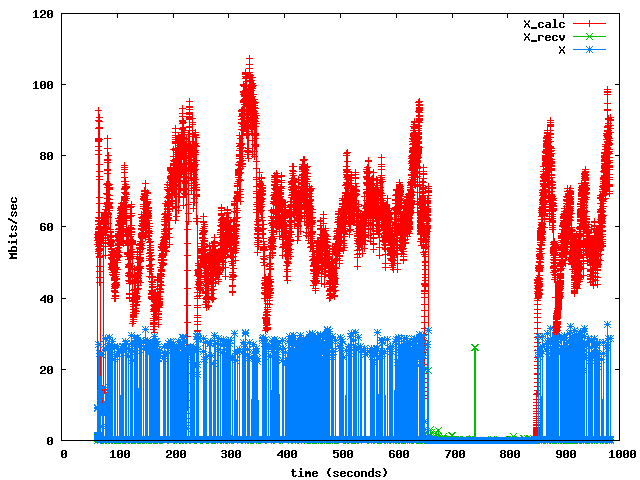

As shown in the following figure, the transmit rate dropped down to virtually 0 during this period.
Since the loss rate p was > 0
during the connection, the allowed transmit rate at this stage was
determined mostly by X_calc, rather than X_recv . But surely,
"merely" 10% loss could not have cut down the rate that much.
2.4 The contribution of CCID-3 to bad performance
The cause of the suddenly high RTT is not totally clear. It is very
likely that link-layer
retransmissions, plus binary backoff due to
contention at the MAC layer
were involved. In the present case two
or three other access points were active in the neighbourhood. Other
possible
sources of interference are
microwave ovens, DECT
wireless phones, and bluetooth equipment.
In any case, the observed condition is a reproducible combination of link layer conditions which accompany a wireless link disturbance.

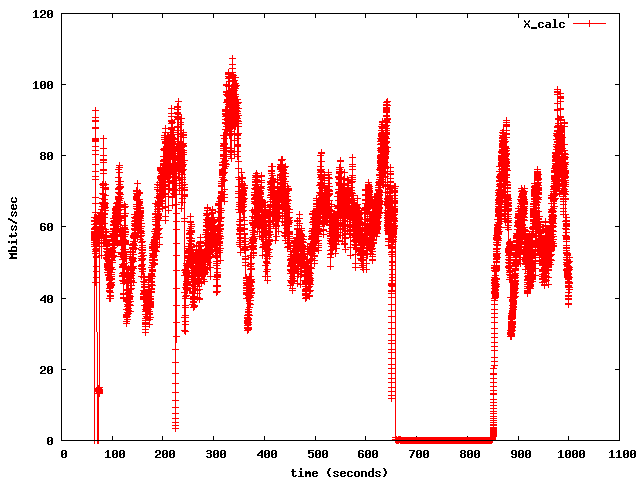

What makes the performance especially bad is that CCID-3 then starts to cut off. The combined increase of loss rate and RTT then effectively kills the whole audio stream. This is further illustrated by looking at the plot of the computed sending rate X_calc = f(1/(p * RTT)).
Zooming in on the period between 650 and 850 seconds shows that X_calc went down to zero, blocking transmission completely for about 200 seconds.
The wireless equipment had previously been tested with UDP and TCP (http) streaming. In both cases the streaming performance more quickly recovered from disturbances: in particular there was not such a drastic knock-on effect as seen here with CCID-3.
(As an aside, CCID-3 was roughly correct in gauging the link speed: the 802.11g link is specified for as 54 Mbps, the average of 50-60 Mbps in the above plot is not too far.)
2.3 Evolution of RTT
The culprit for this behaviour was found in the RTT, which during this period also increased, from an average of about 1..2 milliseconds to 2.5 seconds.2.4 The contribution of CCID-3 to bad performance
The cause of the suddenly high RTT is not totally clear. It is very
likely that link-layer
retransmissions, plus binary backoff due to
contention at the MAC layer
were involved. In the present case two
or three other access points were active in the neighbourhood. Other
possible
sources of interference are
microwave ovens, DECT
wireless phones, and bluetooth equipment. In any case, the observed condition is a reproducible combination of link layer conditions which accompany a wireless link disturbance.
What makes the performance especially bad is that CCID-3 then starts to cut off. The combined increase of loss rate and RTT then effectively kills the whole audio stream. This is further illustrated by looking at the plot of the computed sending rate X_calc = f(1/(p * RTT)).
Zooming in on the period between 650 and 850 seconds shows that X_calc went down to zero, blocking transmission completely for about 200 seconds.
The wireless equipment had previously been tested with UDP and TCP (http) streaming. In both cases the streaming performance more quickly recovered from disturbances: in particular there was not such a drastic knock-on effect as seen here with CCID-3.
(As an aside, CCID-3 was roughly correct in gauging the link speed: the 802.11g link is specified for as 54 Mbps, the average of 50-60 Mbps in the above plot is not too far.)
